CQuiet | Pipe Barrier Noise Shield
CQuiet Barrier Noise Shield is a highly effective sound barrier solution for multiple sound control applications in hydraulic elevator installations.
CQuiet Pipe Noise Shield provides containment of equipment and fluid sounds radiating from the pipe itself. Steel is a very conductive material for sound travel, adding to sound levels within the machine room and hoistway.
CQuiet Barrier Noise Shield is a highly effective sound barrier solution for multiple sound control applications in hydraulic elevator installations.
This Class A fire rated material achieves high sound reductions through its unique composite material construction. A rugged, reinforced, aluminum-faced 1/8 inch sound barrier membrane is combined with a sound absorbing and decoupling fiberglass backing.
The barrier provides sound reducing mass and the reinforced facing adds increased mechanical strength with a higher fire rating. The quilted absorber is used for to isolate/decouple the sound barrier from the noise and vibration source.
CQuiet Pipe Noise Shield provides containment of equipment and fluid sounds radiating from the pipe itself. Steel is a very conductive material for sound travel, adding to sound levels within the machine room and hoistway.

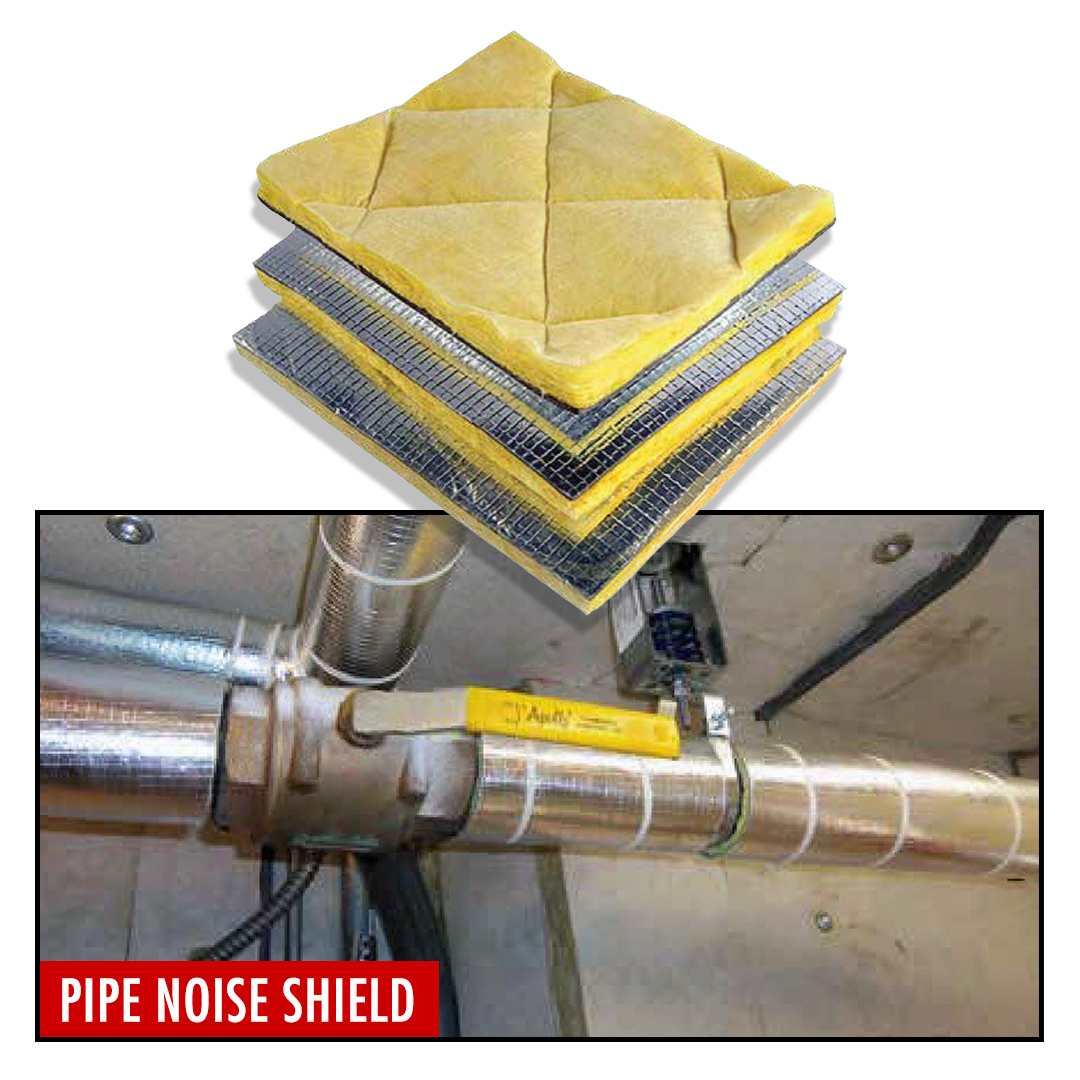

Sound barrier sheet for wrapping Hydraulic Pipes. Supplied in standard 54 inch lengths with applicable widths for each pipe size. Custom sizes available. Includes Installation cable ties.
Physical Properties
Description:
1 lb. / ft² reinforced-foil faced loaded vinyl sound barrier bonded to a 1 inch thick scrim faced quilted sound absorption fiberglass.
Nominal Thickness: 1.0 inch
Weight: 1.2 lb / ft² nominal
Temperature Range: -20° to +220° F
Looking for a different Noise Shield? Click here for the CQuiet DOOR Shield or Hydro Shield.
| Pipe Barrier Noise Shield | Diameter-2 inch, Diameter-2.5 inch, Diameter-3 inch, Diameter-4 inch |
|---|
Related products
-
Acoustics
CQuiet | Firestop Noise Putty
Hydraulic pipe wall penetrations are a frequent point of noise migration. Often the penetration opening is unfilled or improperly filled with a non-fire rated material. Physical contact of the pipe and wall allows structural migration of the systems noise.
Common filler materials provide no significant noise barrier properties or fire protection. CQuiet Firestop Noise Putty provides isolation and high noise blocking properties for wall penetrations around hydraulic pipes.SKU: CQFNP -
Acoustics
CQuiet | Door Barrier Noise Shield
CQuiet Barrier Noise Shield is a highly effective sound barrier solution for multiple sound control applications in hydraulic elevator installations.
CQuiet Door Noise Shield increases the sound barrier properties of any door, metal or wood. The door is always your weakest acoustical point of the machine room. For a complete door system treatment include a CQuiet Door Noise Kits to tightly seal the door.SKU: CQDNS -
Acoustics
CQuiet | Hydraulic Pipe Stand Isolation
Minimizing structure-borne hydraulic elevator sound migration requires detailed attention to isolation of each system component, from the power unit to the rail guides.
A quality muffler installed will greatly reduce the sound carried through the fluid; however, the equipment generated sound energy will travel through the steel of the pipe. The hard, rigid steel-on-steel mechanical connections provide an ideal migration path the entire pipe length to the cylinder.
CQuiet Hydraulic Pipe Stand Isolation provides effective isolation of the pipe stand assembly. Isolation of the pipe is a full pipe wrap strip, support base pad, and isolated washer to prevent a short circuit through the anchor.SKU: CQHPSI-K -
Acoustics
CQuiet | 360 Pipe Isolation
Hydraulic pipe allow a very conductive migration path for equipment generated sound and vibration through the pipe and fluid. Standard industry support systems have little or no mechanical isolation against structure-borne sound migration.
The CQuiet 360 Pipe Isolation is designed to fit standard 1-5/8inch wide channel supports for stand, wall, or ceiling installation. The elastomeric isolation provides high shock and vibration damping, reducing unwanted noise migration into occupied spaces.
A fail-safe 360° isolation design using interlock edges and channel locator legs to ensure that the isolation is installed properly and remains in place.
New and existing installation with an easy change out of existing pipe clamps that also prevents galvanic corrosion. Available in four standard sizes for 2inch, 2 1/2inch, 3inch, or 4inch pipes.
For a complete hydraulic pipe sound treatment include the CQuiet FireStop Noise Putty and CQuiet Pipe Noise Wrap in your project specifications.
CQuiet Firestop Noise Putty Stick is reusable when adding or changing penetrating items since the material remains pliable and does not set up.SKU: CQ360PI
