CQuiet | Hydro Barrier Noise Shield

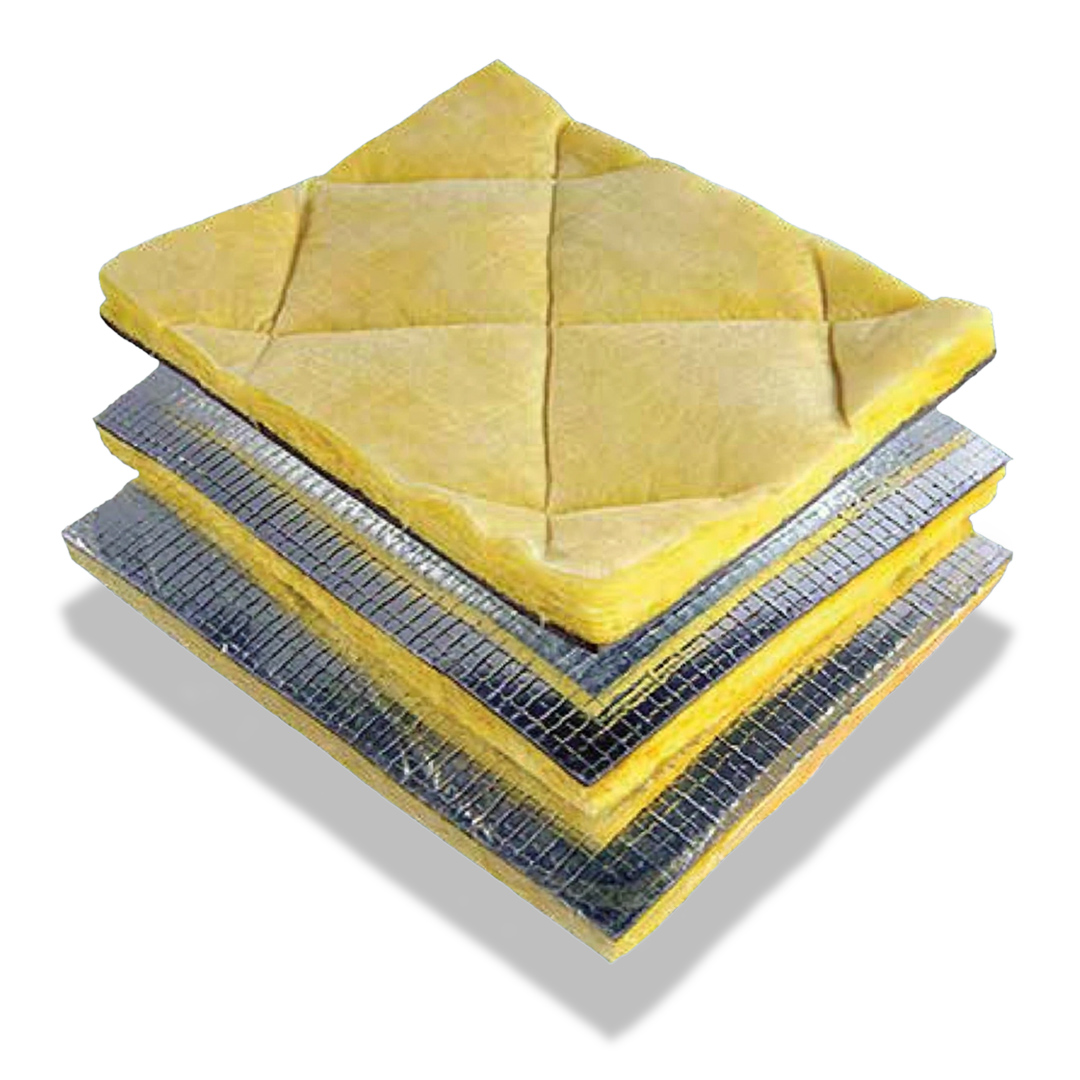

CQuiet Barrier Noise Shield is a Class A fire-rated sound barrier designed to reduce noise and vibration in hydraulic elevator installations. Its reinforced composite construction combines a durable aluminum-faced sound barrier with sound-absorbing fiberglass backing for effective noise reduction and isolation.
CQuiet Hydro Noise Shield is a barrier against the structure-borne sound migration of the high acoustic energy radiating from the power unit into the wall. The nominal 1 inch thickness is ideal for limited space applications.
Product Overview
CQuiet Barrier Noise Shield is a Class A fire-rated sound barrier designed to reduce noise and vibration in hydraulic elevator installations. Its reinforced composite construction combines a durable aluminum-faced sound barrier with sound-absorbing fiberglass backing for effective noise reduction and isolation.
CQuiet Hydro Noise Shield is a barrier against the structure-borne sound migration of the high acoustic energy radiating from the power unit into the wall. The nominal 1 inch thickness is ideal for limited space applications.

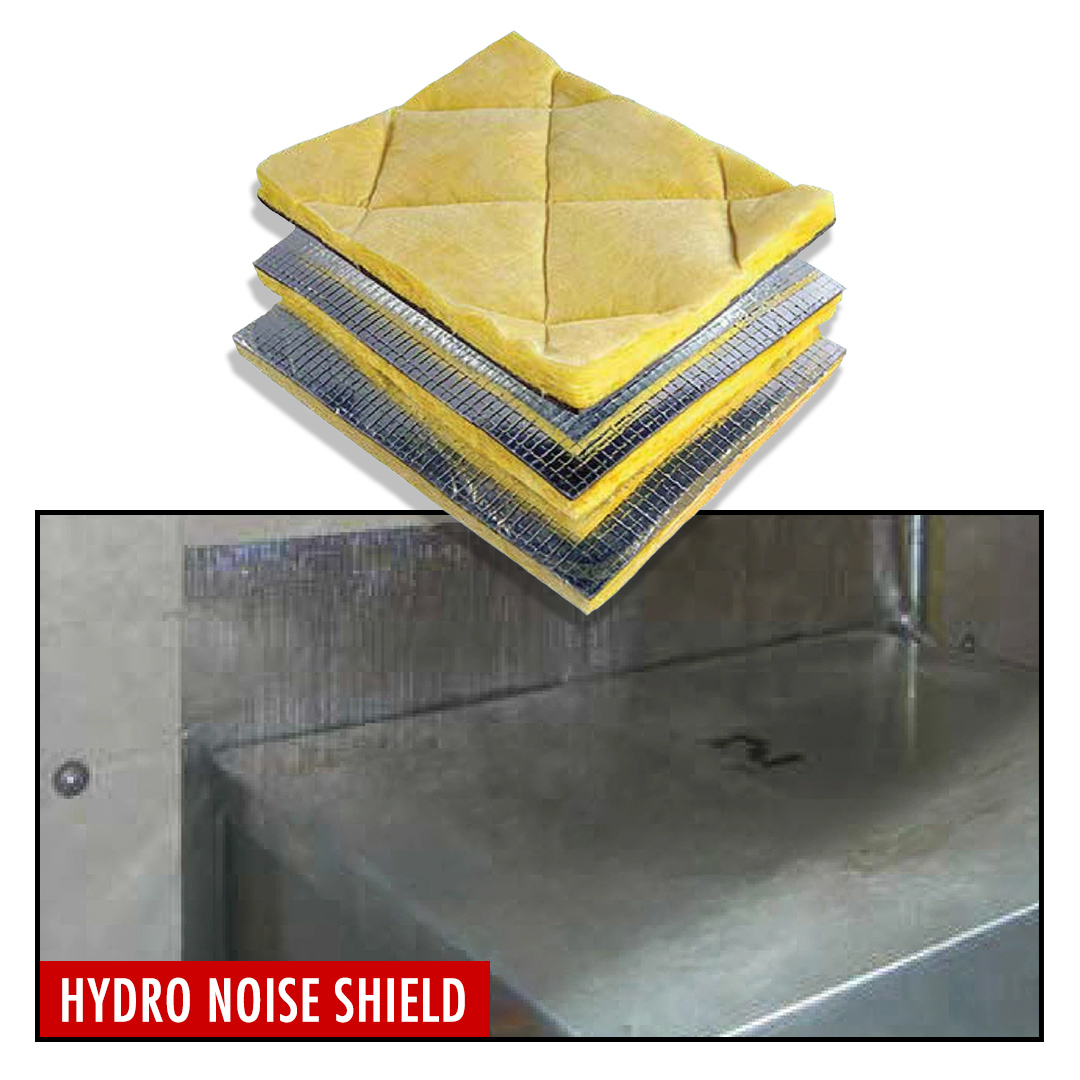

Sound barrier sheet for installation between power unit and wall. Custom sizes available. Simple installation and field cutting.
Includes: Drill bit & 10 fastener / washer sets.
Looking for a different Noise Shield? Click here for the CQuiet DOOR Shield or PIPE Shield.
| Hydro Barrier Noise Shield | Concrete, Drywall |
|---|
