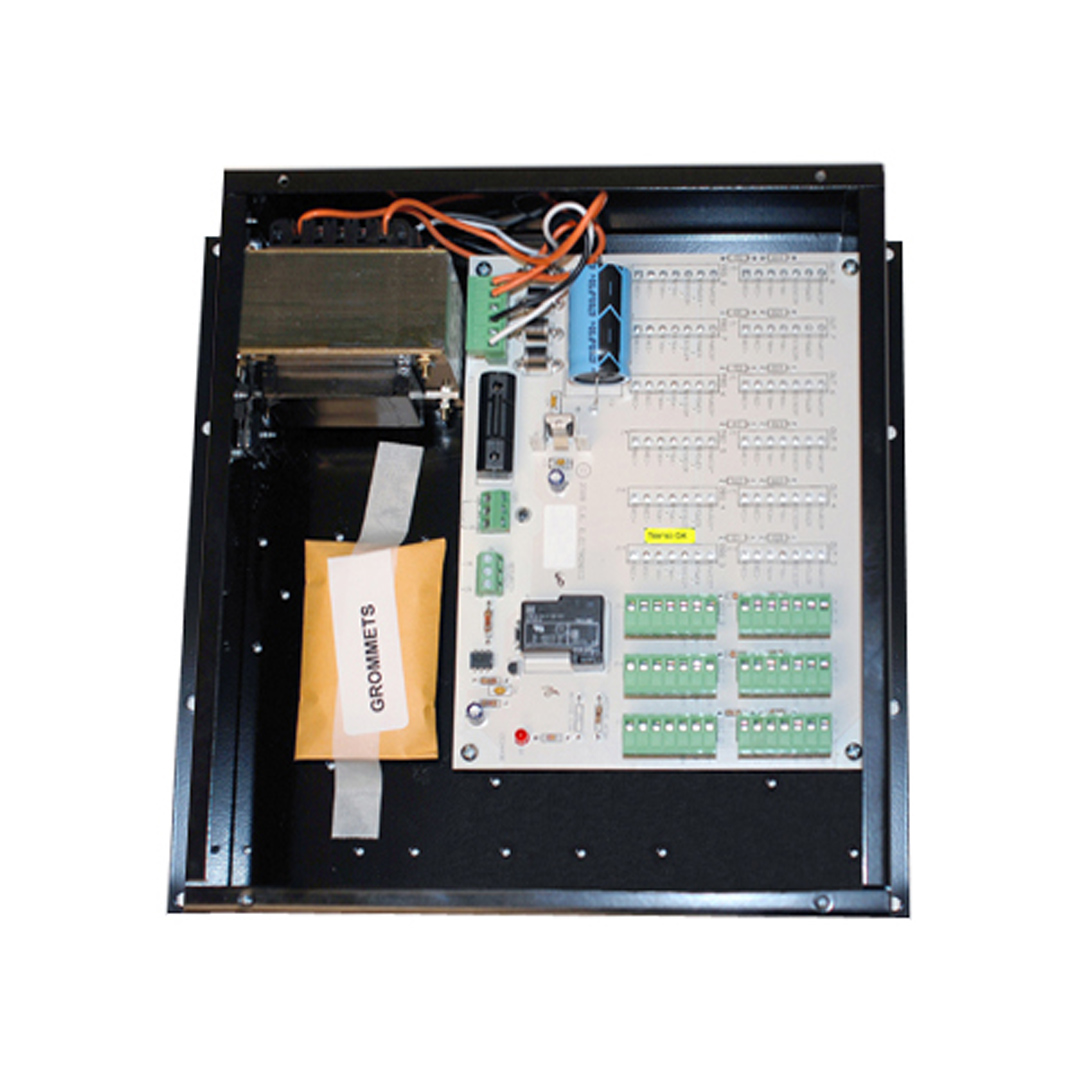

SECPS-XX | REMOTE PROGRAM STATION


SECURITY SYSTEMS

Ver. 1 Rel. 05.14.02



SECPS-XX




REMOTE PROGRAM STATION

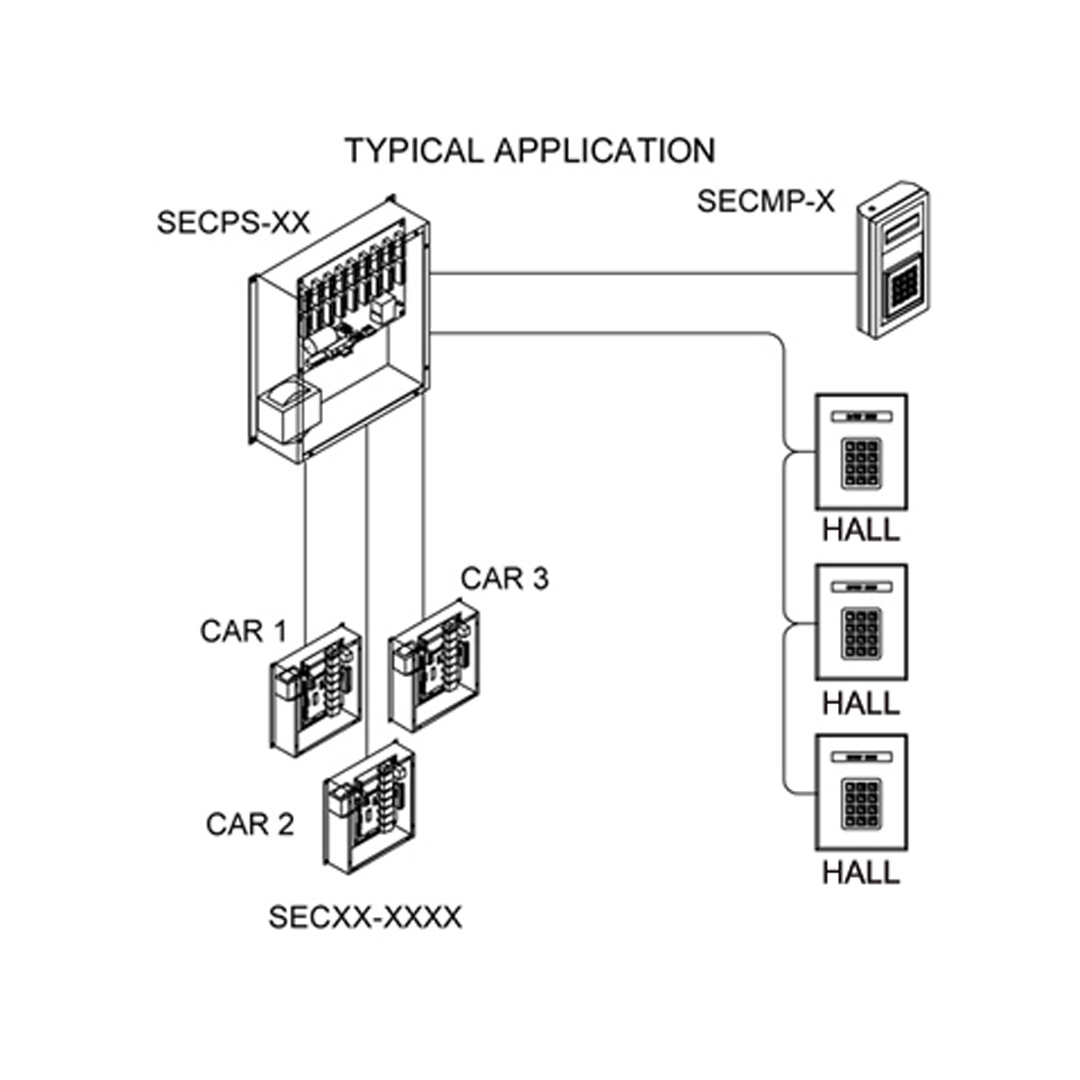

This unit allows you to power and program multiple units from a remote location. Typical applications would include security access for hall call buttons, stairwells, garage, etc. Up to 16 SEC01-XXXX may be daisy chained together and programmed from this central location. 8 elevator car units can also be hooked to this module for programming. An onboard override will turn off the remote powered SEC01 units as long as an external input signal is present. Must purchase hand held unit for actual programming.




Features:

> Easy installation

> Pluggable connections

> RS485 Interface

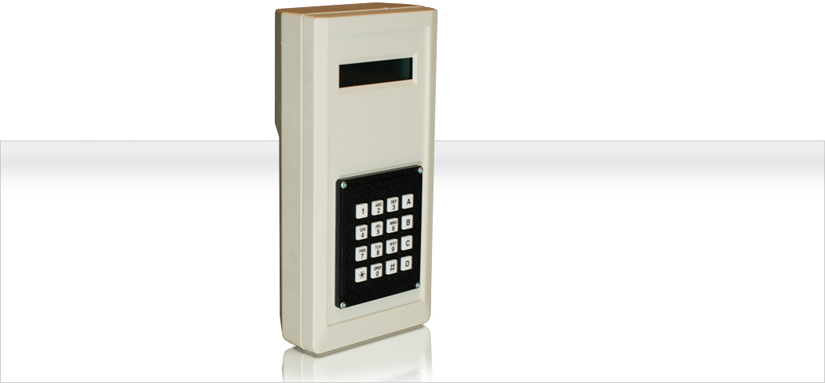

> Uses hand held programmer

> Programming ports for up to 8 cars

> On board power supply capable of driving 16 remotes SEC01


Dimensions:

> 11.00"W x 11.00"H x 3.375"D


Note:

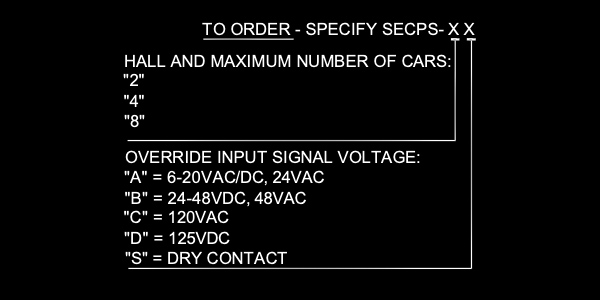

1. If a special voltage is required, please consult factory.
