Ver. 3 Rel. 04.16.18

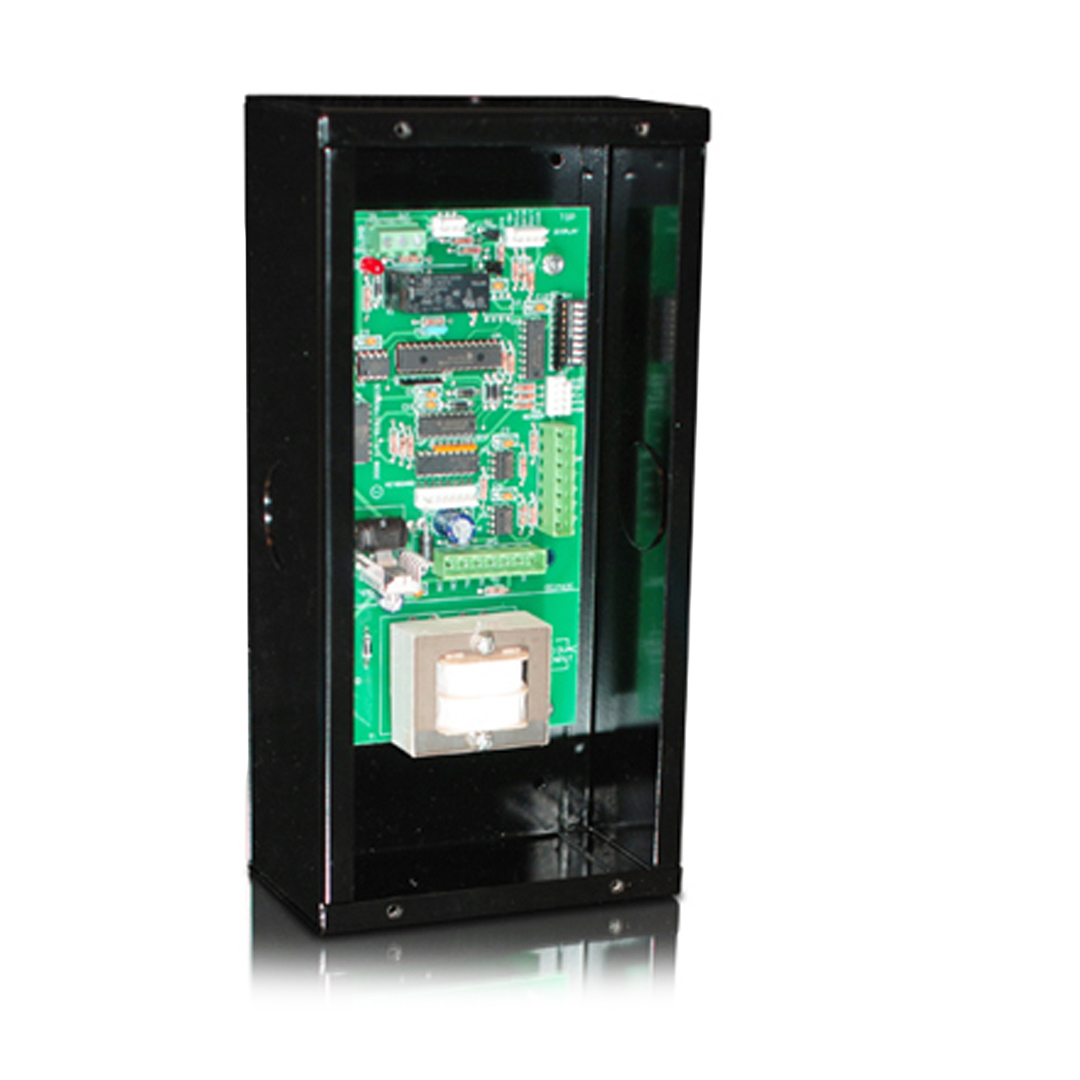

SECURITY ACCESS SYSTEM
Single contact security module - This unit may be used alone to secure access to garages, stairwells or hall call buttons. The RS 485 Port allows you to daisy chain up to 16 multiple units together to make a complete intergrated system.
Features:
> 1 relay contact - secures one landing
> Keypad / card reader
> Field programmable
> RS485 interface
> 6 digit codes with up to 600 users
Dimensions:
> 5.875"W x 11.50"H x 2.375"D
Notes:
1. The stand alone unit does not have a fire service override as it was not designed for car applications.
2. When the SEC01 (remote) is remote powered by a SECPS. The unit has a fire service override (security cutout) input.
3. When used in a multiple location system, see SECPS-XX for power, programming, and wiring specifications.
