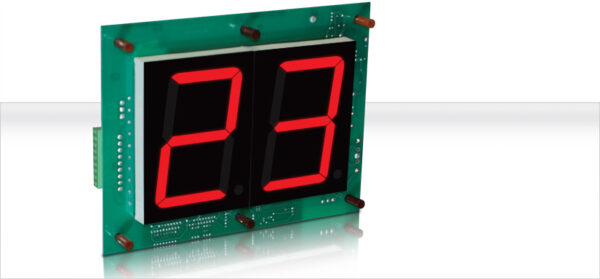

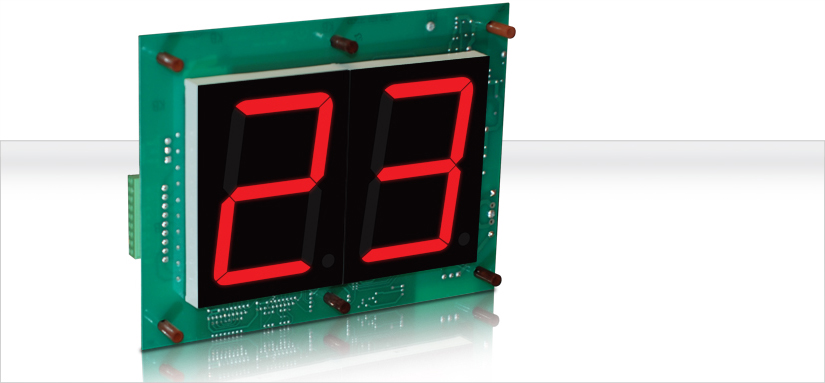

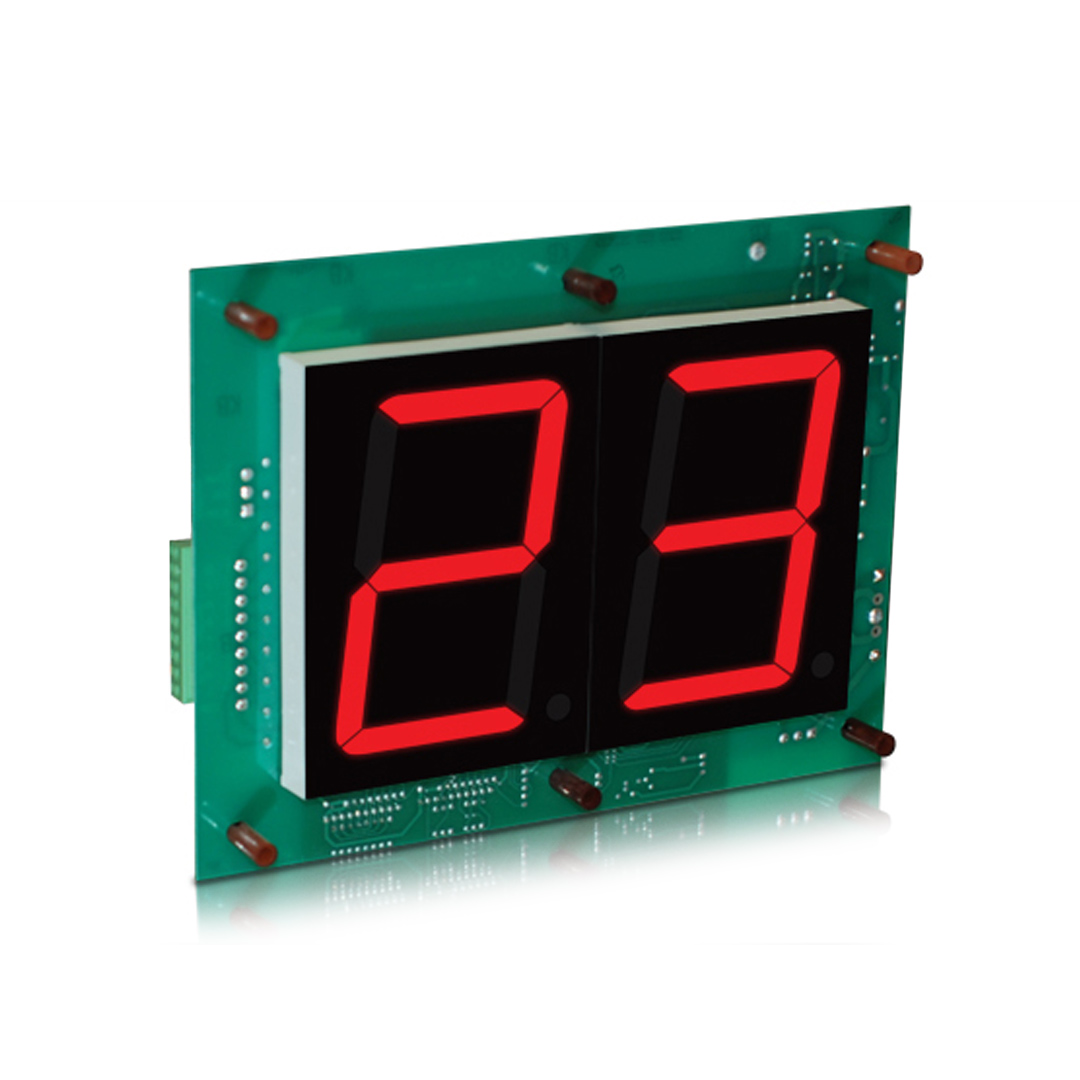

SH240-RXXX | 4 Inch Characters Segmented Red High Brightness LED Position Indicator

SEGMENTED 4″ CHARACTERS

Segmented red high brightness LED digital position indicator.



---

Typical Applications:

•  Car or hall display



---

Features:

•  Self contained
•  Latched inputs
•  Passing chime output
•  Error detection and correction feature
•  8 Inputs & Up/Down



---

Dimensions:

•  9.10″W x 6.80″H x 2.25″D (*2.00 MICRO COMM) | 4″ CHARACTER



---

Notes:

1. * May need additional decoder card.
2. If a special voltage is required, please consult factory.
Consult factory for alpha characters available (Example: A, C, E, F, H, L, O, P, S, U)
