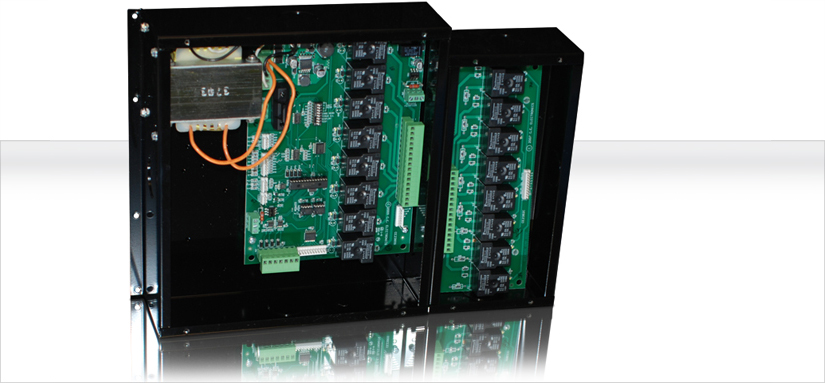

SEC16-XXXX | Securoty Button Interface up to 16 secured landings
This system was design to allow up to 16 secured landing when the unit is activated. It disables the landing through a relay that is wired in circuits. Whn the appropiate code is entered, the relay closes for a predetermined (adjustable) time. It then allows the user to input the floor or floors that he has been given access. An on board override will de-activate the unit as long as an external input signal is present. An optional time module can activate or de-activate the system at programmable times during the day.
SECURITY BUTTON INTERFACE
This system was design to allow up to 16 secured landing when the unit is activated. It disables the landing through a relay that is wired in circuits. Whn the appropiate code is entered, the relay closes for a predetermined (adjustable) time. It then allows the user to input the floor or floors that he has been given access. An on board override will de-activate the unit as long as an external input signal is present. An optional time module can activate or de-activate the system at programmable times during the day.
Features:
- Up to 16 landings
- Override input
- Field programmable
- Pluggable connections
- Keypad/Card reader or elevator button access
- Custom graphics or photo ID cards available
- Optional programmable timer
- Access to multiple floors, 6 digit codes with up to 600 users
Dimensions:
- 11.0″W x 11.0″H x 3.375″D
Notes:
1. If a special voltage is required, please consult factory.
2. If needing over 16 landings, please consult factory.
