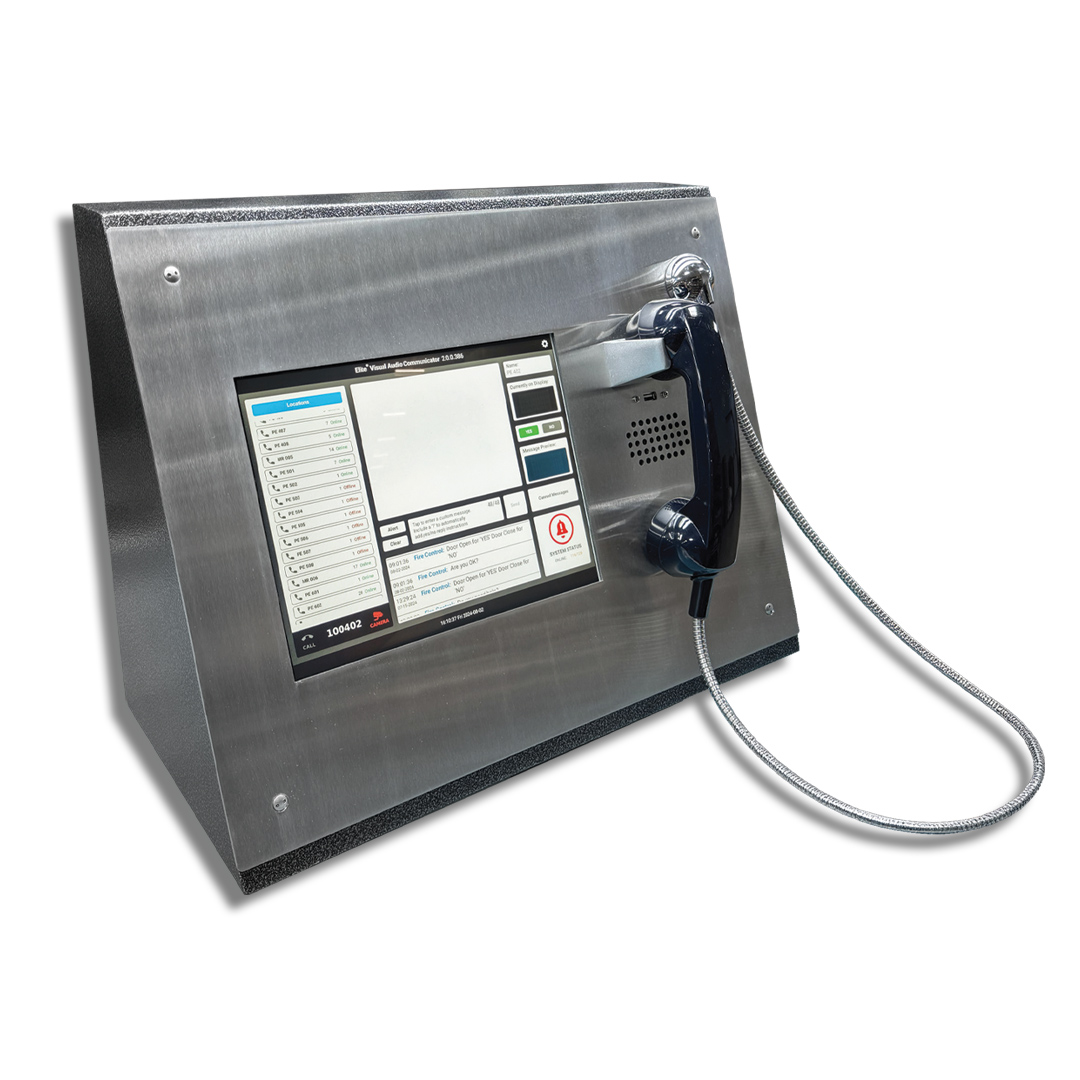

NINPS-T12X | EVAC Security Station – Desktop / Wall Mount
This system is designed to meet the requirements for the 24 / 7 in house 2-way communication code 2.27.1.
System provides a 12.1″ Touch Screen with Peer-to-peer Server software/interface. Network intercoms / in Ceiling Camera’s, Machine Room interfaces, per code it provides a UPS for the Touch Screen, Battery Backup for the Intercom / Camera / OELD Unit, system supports a universal 3 button interface 12-120v / Dry Contact
EVAC Security Station – Desktop / Wall Mount
This system is designed to meet the requirements for the 24/7 in house 2-way communication code 2.27.1.
System provides a 12.1″ Touch Screen with Peer-to-peer Server software/interface. Network intercoms / in Ceiling Camera’s, Machine Room interfaces, per code it provides a UPS for the Touch Screen, Battery Backup for the Intercom / Camera / OELD Unit, system supports a universal 3 button interface 12-120v / Dry Contact
Typical Applications:
- 24 / 7 In House command centers
- 24 / 7 Fire command centers
Features:
- Network Interface
- Single TWSP Interface Cab to Machine Room
- 24volt power in car supply RSL/MICRO COMM / 24 VDC
- PCAP 12.1 Touch Screen with UPS
- Convert in ceiling NT Camera 1.7/3.6 mm with 25′ Cable Interface supplied
- 12-120v, dry contact button interface
- OLED Display or Elite PI interface
- UL 60950, CSA 22.2 #60950
Dimensions:
Desktop Display 19.5″W x 14.25″H x 8.75″D | Wall Mount Display 19.5″W x 13″H x 4.5″D
Notes:
Message can be displayed on OLED or Elite PI
