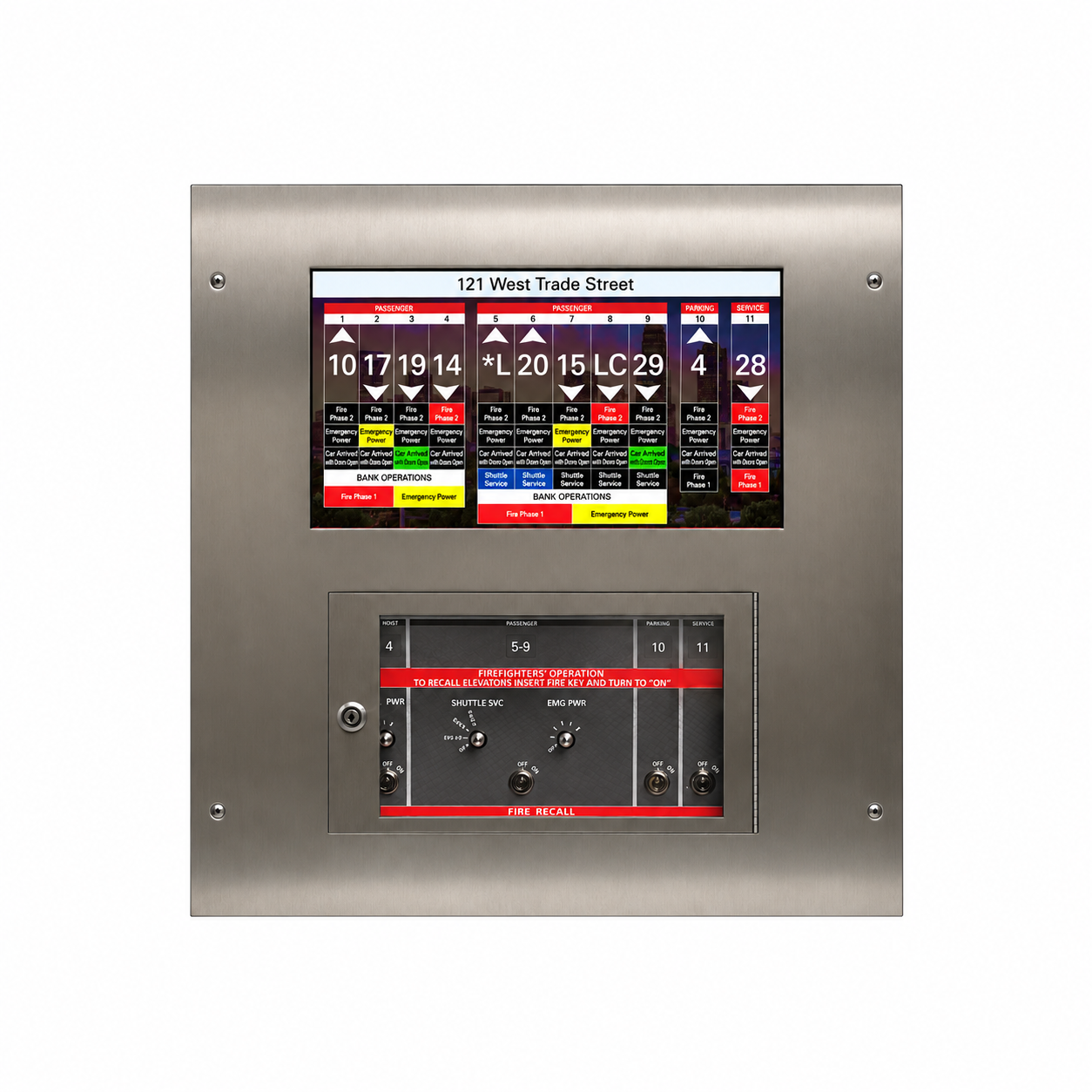

MBS300-XX | MaxBank Lobby Panel System 18.5 inch Screen Single Point Visual Status of 10-24 Cars
The MBS300 is designed for projects of 10-24 Cars and up to 16 Groups. An 18.5″ Industrial TFT screen provides a sleek and modern single visual point of the operating status for all Cars, with standard screen jewels for Fire Phase 1 & 2, Emergency Power, and Car Arrived with Doors Open. Remote Fire Recall and Emergency Power switches are included as a standard.
MBS300-XX MAXBANK LOBBY PANEL SYSTEM
The MBS300 is designed for projects of 10-24 cars and up to 16 groups. An 18.5-inch Industrial TFT screen provides a sleek and modern single visual point of the operating status for all cars. Standard screen jewels are Fire Phase 1 & 2, Emergency Power, and Car Arrived with Doors Open. Other status mode jewels are available with a corresponding controller signal. Remote Fire Recall and Emergency Power switches are included as standard. If the project spec requires other control switches, they may also be included in the design. Typical lobby panel installations require 10-20 multi-conductor bundles per car to be pulled to the lobby panel, while the MBS Lobby Panel only requires a single RS485 3-TWSP wire drop from the EMR to the lobby panel for the entire group.
Typical Applications:
- Fire Service Control (FCC/FSC/CACF) Lobby Panel
- 2019 Code Requirements for Main/Secondary Panel Operation
- Remote Security or Facilities Elevator Status Monitoring
Features:
- Lower total system install cost
- Single 3-TWSP from MR to lobby panel
- System Network Operation Option Available
- Pre-wired key switches
- Flexible number of Car and Group Status Jewels
- Reduced lead time – Standard, Standard Stock Panel
- Industrial Rated 0-70°C operating temperature
Dimensions:
- Single Switch Compartment: 25″W x 28″H | 23.75″W x 26.75″H x 6.00″D
- Two Switch Compartments: 25″W x 36″H | 23.75″W x 34.75″H x 6.00″D
