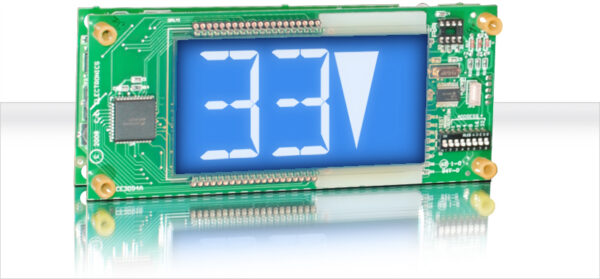

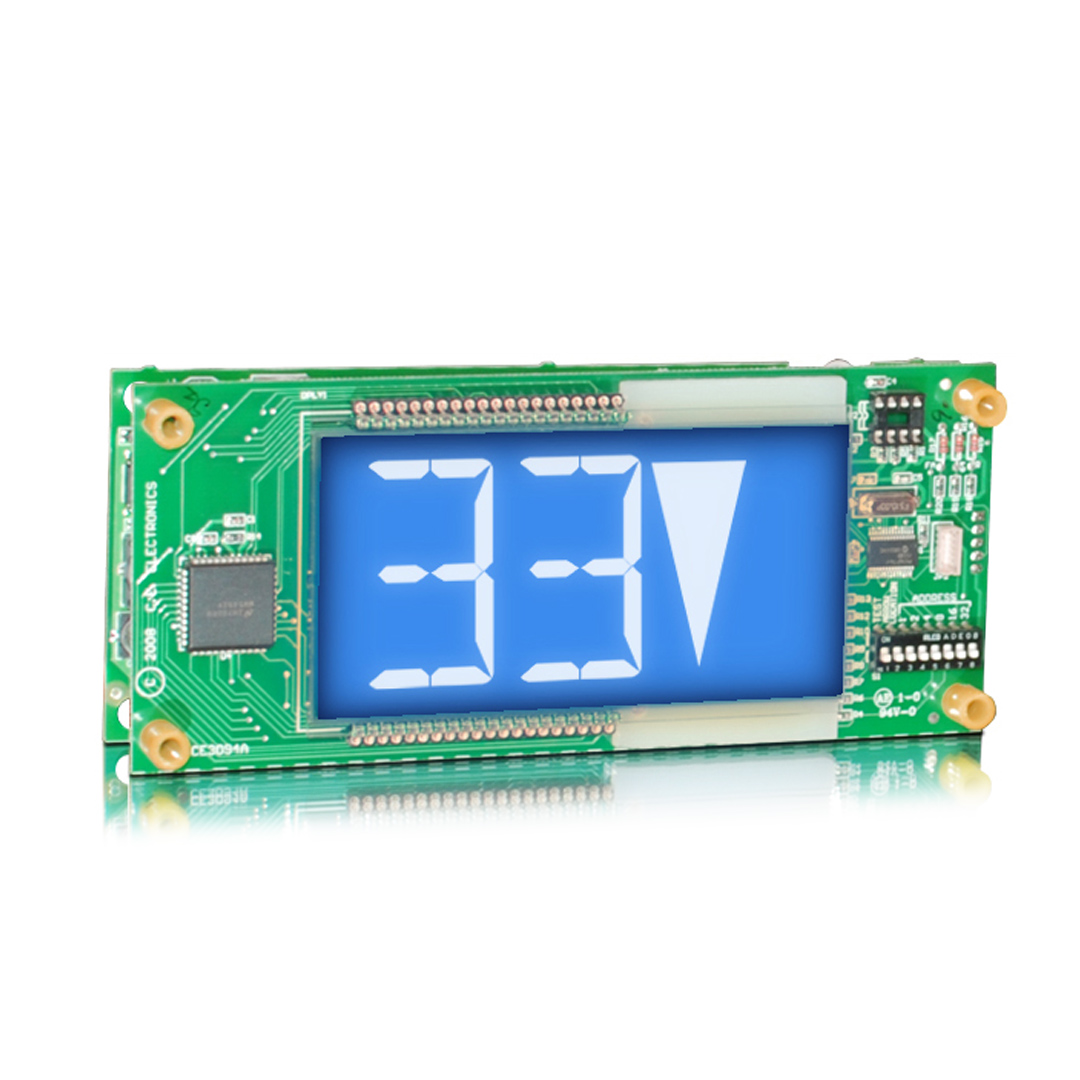

MB215-XX | Blue Liquid Crystal 1.5 inch (40mm) LCD Display

BLUE BACKGROUND LIQUID CRYSTAL DISPLAY  |  1½” (40mm) LCD DISPLAY

Blue Liquid crystal display indicator with dual digits and arrow for floor position as well as car direction. Any alphanumeric character and up/down arrows can be displayed in either single or double-digit floor designations.

Typical Applications:

•  Car-OP Panel
•  Transom
•  Car and hall fixtures

Features:

•  Long-life LED backlighting
•  Fast, 3-wire hookup
•  Latched inputs
•  Crosswire protected
•  Self-testing
•  Alternate message
•  Passing chime output
•  Error detection and correction feature

Dimensions:

•  6.50″W x 2.70″H x 1.625″

Note:

1. This is not a stand-alone unit. It must be used in conjunction with a MICRO COMM interface.
