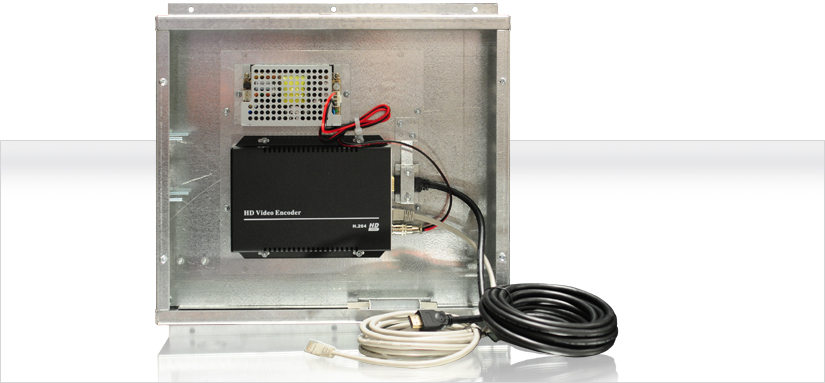

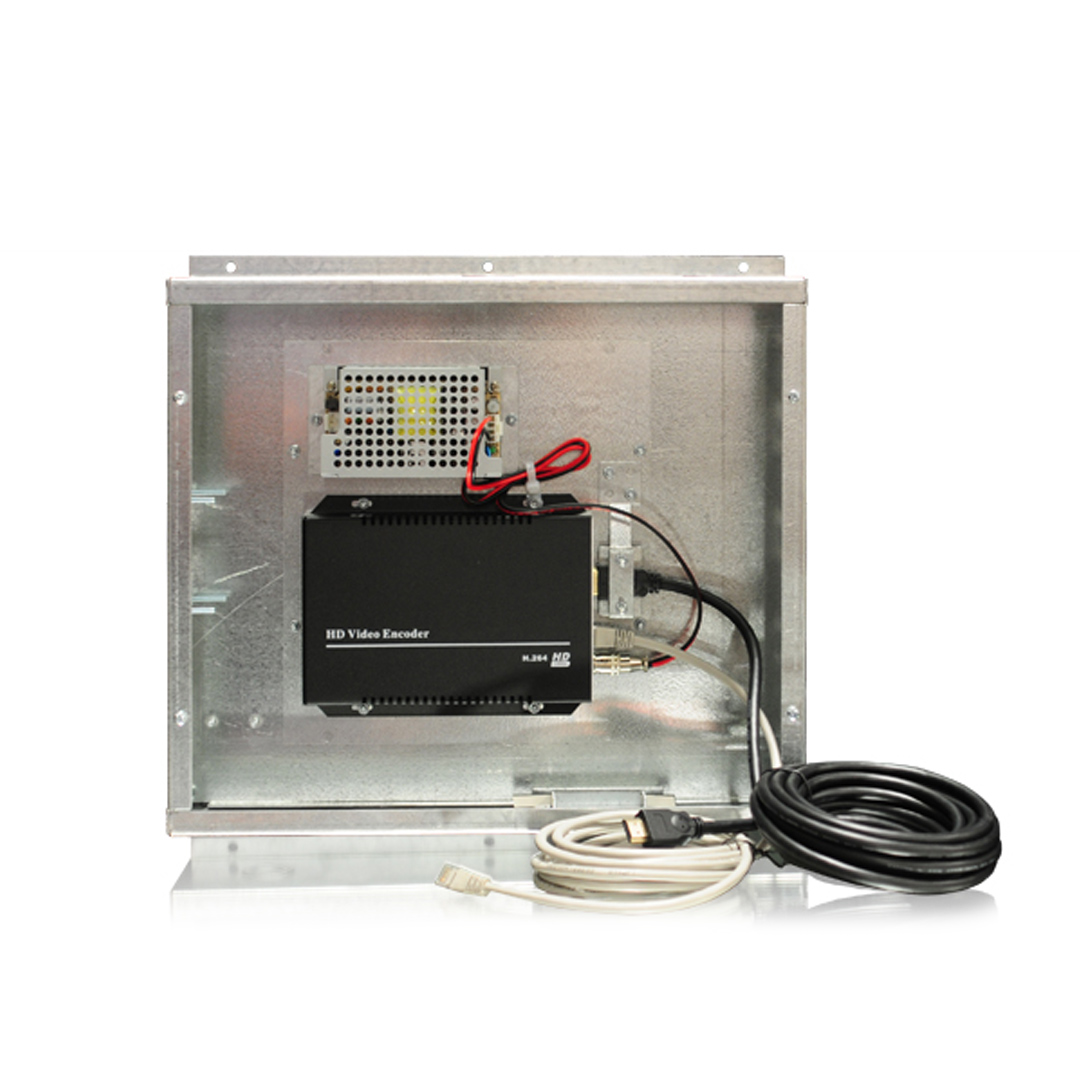

HDINT-4 | HD High Definition Video Encoder

The HDINT is a high definition video encoder that converts high definition signals from the customer’s third-party HDMI source to Ethernet through an RJ45 connector. This allows C.E. to stream video content in a high definition format at up to 4MB/sec through a C.E. ENET bank interface.

Technical Reference:

• HDMI input is HDCP version 1.2 with a maximum resolution of 1080p @ 60 Hz with audio.
• Output is an RTSP stream with H.264 compression and embedded audio.
• The encoder is typically set at 720p resolution.
• Encoder settings may be changed depending on display requirements.
• For a full-screen 15.6-inch or larger 16:9 display, the output is set to 1080p resolution.
• For a full-screen 15-inch or smaller Elite Pro 4:3 display, the output is set to 1024 × 768 resolution.

Includes:

• 15-foot HD cable
• 10-foot RJ45 Ethernet cable
• UL/CSA Listed
