EV130-XXXXX | 75mm Dot Matrix [3″] Character 60mm W x 160mm H x 44.5mm D

DOT MATRIX

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in single-digit floor designations.

Typical Applications:

•  Car-OP Panel
•  Transom-car or Hall

Features:

•  Low cost design
•  Self contained unit
•  Latched input
•  Scrolling & roll over
•  Hall lantern option
•  Passing chime output
•  Self Testing
•  Message inputs
•  Error detection and correction feature

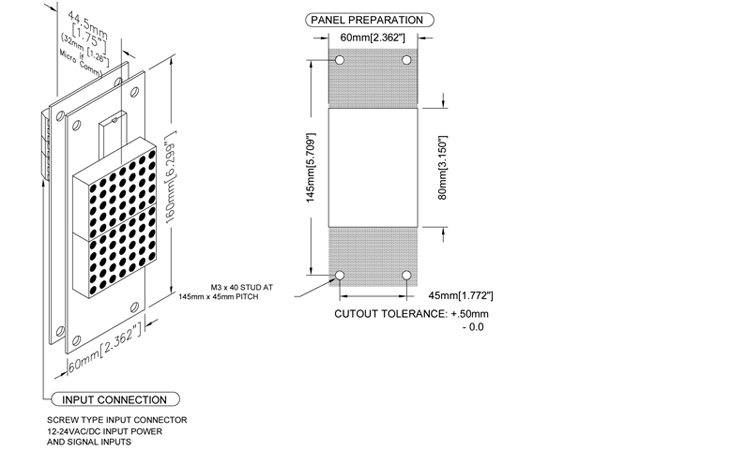

Dimensions:

•  60mm W x 160mm H x 44.5mm D  |  2.362″W x 6.299″H x 1.75″D

Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
