EH307-X | 3 DIGIT 17.78mm [ .7″] DOT Matric Indicator 88.9mm W x 28.575mm H x 69.85mm D

3 DIGIT .7″ DOT MATRIX INDICATOR

For floor position display. Any alphanumeric or custom character can be displayed. MICRO COMM 3-wire.

Features:

•  Low cost design
•  Latched unit
•  Scrolling and roll over
•  Passing chime output
•  Self Testing
•  Error detection and correction feature

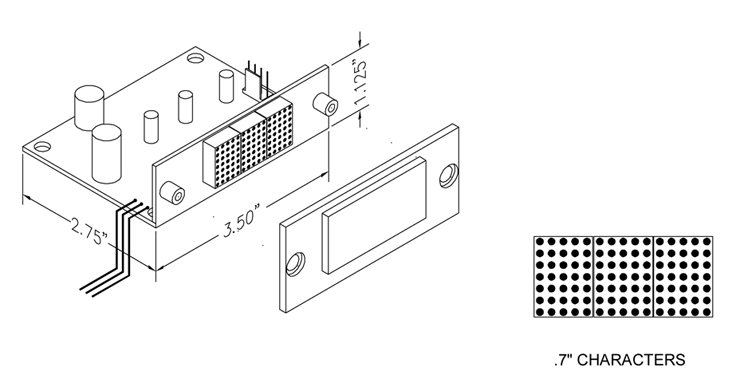

Dimensions:

• 3.50″W x 1.125″H x 2.75″D  |  .7″ CHARACTERS
• 88.9mm W x 28.575mm H x 69.85mm D   (17.78mm Characters)

Notes:

1. This is not a stand alone unit. MUST be used in conjunction with a MCCU controller.
2. Only three hoist wires required from “CCU” to “RDI”.
