MH222-XXX | 2.2" CHARACTERS | 2.5" ARROW


MICRO COMM DISPLAYS

Ver. 8 Rel. 04.07.22

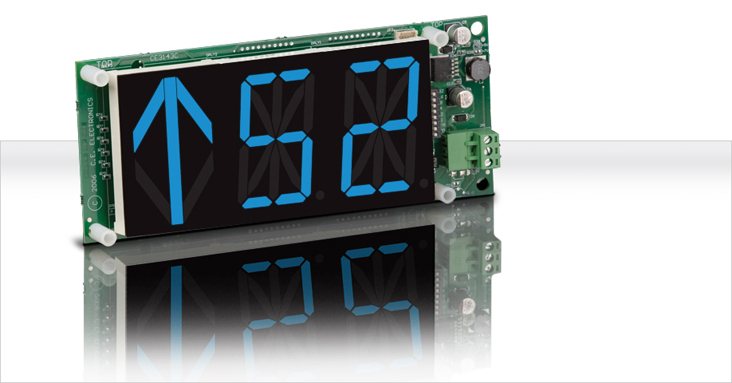

REMOTE DISPLAY INDICATOR "RDI"

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in either single or double digit floor designations.


Typical Applications:

> Car-OP Panel

> Transom-car or Hall

> Surface mount fixtures


Features:

> Ultra-thin package

> Fast, 3-wire hookup

> Latched inputs

> Cross wire protected

> Self Testing

> Alternate Message

> Passing chime output

> Error detection and correction feature


Dimensions:

> 7.5"W (7.88 w/ Passing Chime) x 3.1"H x 0.875"D   |   2.2" CHARACTERS   |   2.5" ARROW


Colors Available:



Note:

1. This is not a stand alone unit. Must be used in conjunction with a MICRO COMM interface.


VIEW: CATALOG PAGE___|___WIRING DIAGRAM___|___METAL: 70100006 | 70100007___|___DOWNLOAD: E-FLYER
