Ver. 6 Rel. 10.26.16

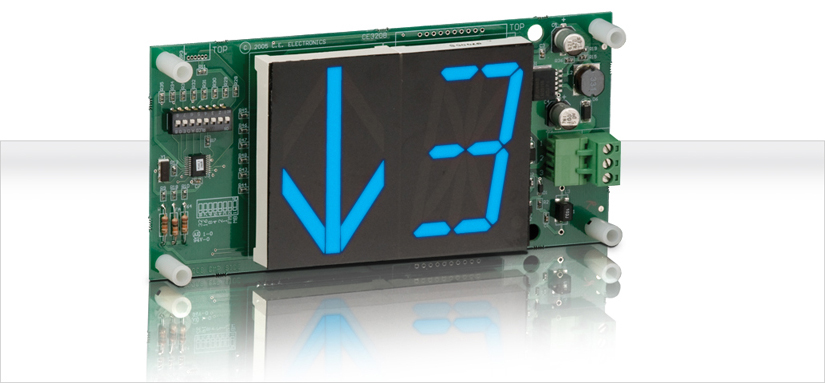

REMOTE DISPLAY INDICATOR "RDI" | 2.2" CHARACTER - 2.5" ARROW
Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed.
Typical Applications:
> Car-OP Panel
> Transom-car or Hall
> Surface mount fixtures
Features:
> Ultra-thin package
> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self testing
> Alternate message
> Passing chime output
> Error detection and correction feature
Dimensions:
> 6.6"W x 3.1"H x 1.375"D*
(* Surface mount depth of 1" available without passing chime option)
Colors Available:
Note:
1. This is not a stand alone unit. Must be used in conjunction with a MICRO COMM interface.
