DH410-XXXXX | 1" CHARACTERS


DOT MATRIX COMPETITOR SERIES

Ver. 6 Rel. 10.07.03

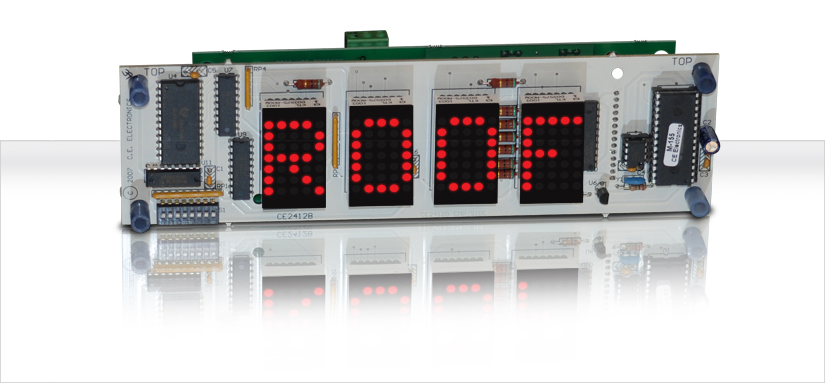

DOT MATRIX LED DIGITAL INDICATOR

Dot Matrix LED digital indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either double digit with single "UP/DOWN" arrows or four digit floor designations.




Typical Applications:

> Car-OP Panel

> Transom-car or Hall




Features:

> Low cost design

> Self contained unit

> Latched input

> Self Testing

> Scrolling

> Passing chime output

> Error detection and correction feature

> UL listed




Dimensions:

> 8.35"W x 2.40"H x 2.60"D




Colors Available:

Red, Green, Blue, White, Amber




Notes:

1. If a special voltage is required, please consult factory.

2. *110VAC not required for power supply on MICRO COMM units.
