DH330-RXXXX | 3" CHARACTERS


DOT MATRIX COMPETITOR SERIES

Ver. 4 Rel. 11.06.08

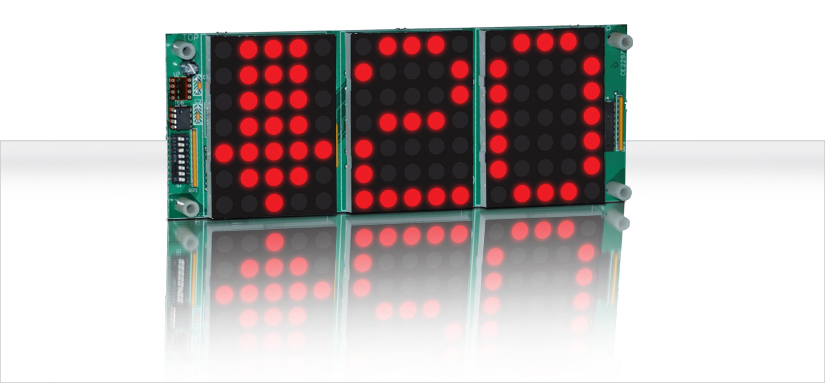

DOT MATRIX LED DIGITAL INDICATOR

Dot Matrix LED digital indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with seperate "UP" and "DOWN" arrows. Double digit with single "UP/DOWN" arrow, or triple digit floor designations.




Typical Applications:

> Car-OP Panel

> Transom-car or Hall



Features:

> Low cost design

> Self contained unit

> Latched input

> Self Testing

> Scrolling

> Passing chime output

> Error detection and correction feature

> UL listed



Dimensions:

> 8.50"W x 3.20"H x 2.60"D




Color Available:





Notes:

1. If a special voltage is required, please consult factory.

2. *110VAC not required for power supply on MICRO COMM units.
