MR105-XXX | SEGMENTED LED DIGITAL INDICATOR | 1/2"


DIRECT REPLACEMENTS

Ver. 2 Rel. 10.31.08

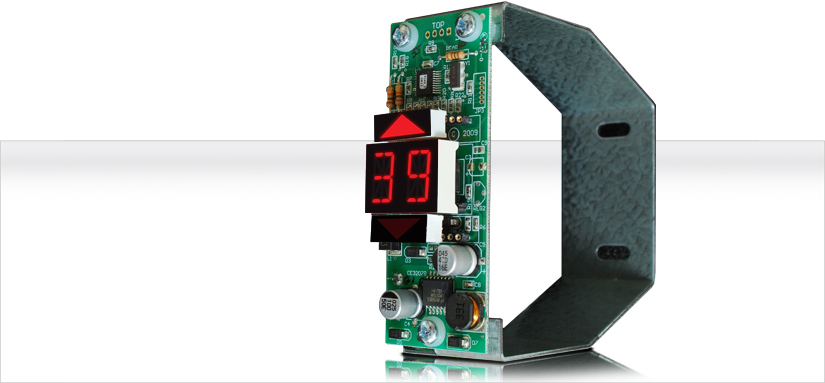

SEGMENTED LED DIGITAL INDICATOR

For floor position display, as well as car direction. Any alphanumeric character can be displayed in either single or double digit floor designations. Arrow can be centered over right digit when required.




Typical Applications:

> Direction replacement for Otis Roto Dial




Features:

> Fast, 3-wire hookup

> Latched inputs

> Cross wire protected

> Self Testing

> Alternate message

> Error detection and correction feature

> Passing chime NOT available on this unit


Dimensions:

> 1.4"W x 3.8"H x 4.2"D




Colors Available:




Notes:

1. This is not a stand alone unit. Must be used in conjunction with a MCCU controller.

2. Requires a MICRO COMM Driver.

3. *Arrows supplied in RED.




VIEW: CATALOG PAGE_____|     OTIS ROTO-DIAL SYSTEM RETROFIT
