MCUBE-XXX | LED EXTENDED DESTINATION CUBE


DESTINATION BASED DISPLAYS

Ver. 3 Rel. 03.22.21

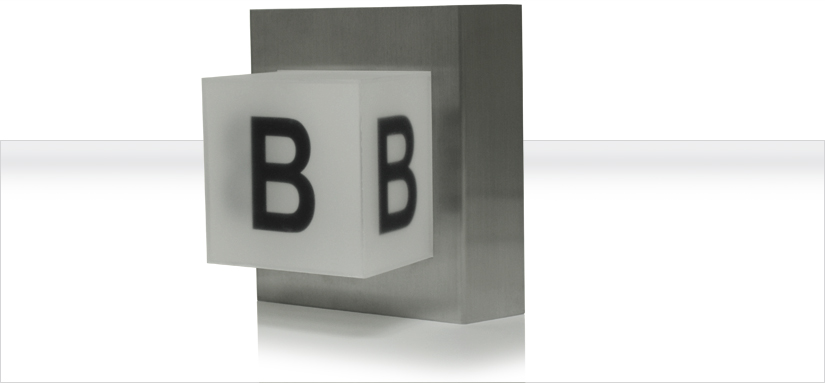

MCUBE-XXX

LED EXTENDED DESTINATION CUBE

Long life, solid state LED's with a 100,000 hour rated life. Accepts existing signals over the MICRO COMM link. This is a three sided display giving you 180° viewing. The unit is also equipped with an arrival speaker and destination tones. The programming is dip switch selectable.




Typical Applications:

> Hall/Destination Display

> 180° viewing angle


Features:

> 2" - 3" characters (Front View)

> 180° viewing angle lantern

> 1 year factory warranty

> Includes speaker for tones

> MICRO COMM input

> Optional destination voice card - additional cost

__Note: When adding voice board, this will include our 9SPKRASY03 SPEAKER




Dimensions:

> 5.030"W x 5.030"H x 3.500"D [Allow min. 1.375 inches clearance behind metal for electronics]




Colors Available:

Red, Green, Blue, White, Amber




Notes:

Lead times vary and characters need to be specified.

Some features may not be available for your system. Please check with your manufacture or engineering for special features.






MCUBE Characters




VIEW: CATALOG PAGE ____|     WIRING DIAGRAM ____|     METAL: APPLIED MOUNTING | SURFACE MOUNT ____|     DOWNLOAD: E-FLYER
